High-Efficiency Circular Clarifier
High-Efficiency Circular Clarifier
Advanced Sedimentation & Solid–Liquid Separation Unit
The High-Efficiency Circular Clarifier is an engineered solution designed to achieve optimal solid–liquid separation in water and wastewater treatment processes. Its circular hydraulic design ensures effective settling of suspended solids and delivers high-clarity effluent at the final treatment stage.
Design & Technical Specifications:
Clarifier Tank Body:
Robust circular concrete or steel tank designed to handle high hydraulic loads and continuous operation.
Central Service Bridge:
Equipped with an overhead service bridge and high-visibility safety handrails, allowing safe access for inspection and operational monitoring.
Central Scraper Mechanism:
A slow-rotating bottom scraper collects settled sludge and conveys it efficiently toward the central sludge hopper.
Feed Well (Energy Dissipation Zone):
Central feed well ensures uniform influent distribution, minimizes turbulence, and enhances sedimentation efficiency.
V-Notch Effluent Weirs:
Peripheral V-notch weirs provide uniform, low-velocity effluent discharge, ensuring consistent water quality across the tank.
Key Advantages:
High Settling Efficiency:
Optimized hydraulic design maximizes detention time, achieving superior removal of suspended solids.
Low Energy Consumption:
Gear-driven bridge and scraper operate at low speed with high torque, reducing power consumption while maintaining reliability.
Easy Access & Maintenance:
Side ladder and top bridge allow safe and convenient access to drive units and central components for routine maintenance.
Applications:
Municipal wastewater treatment plants (primary and secondary clarification).
Industrial wastewater treatment facilities.
Drinking water treatment plants for high turbidity removal.
The High-Efficiency Circular Clarifier delivers a balanced combination of performance, durability, and operational efficiency, making it a reliable core unit in modern water treatment systems.

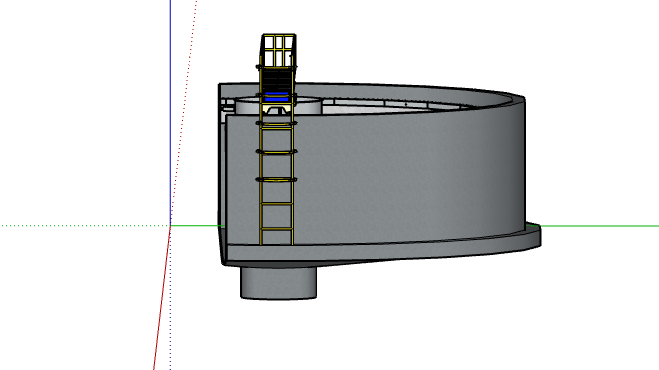

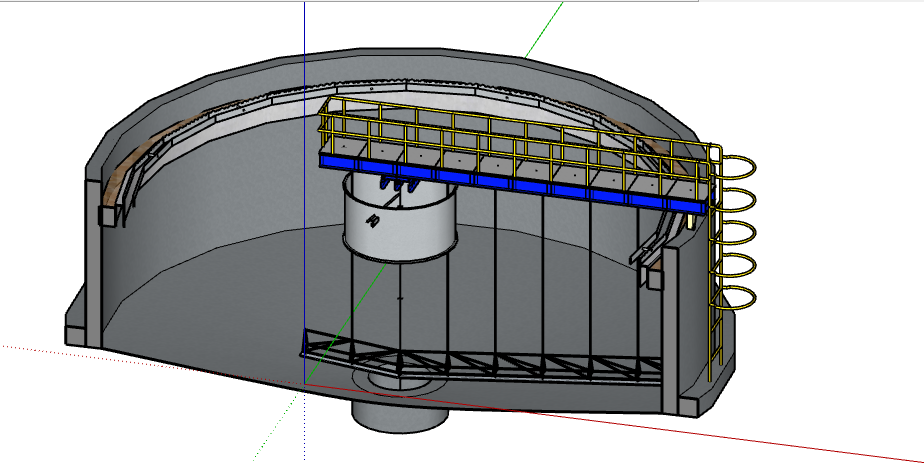

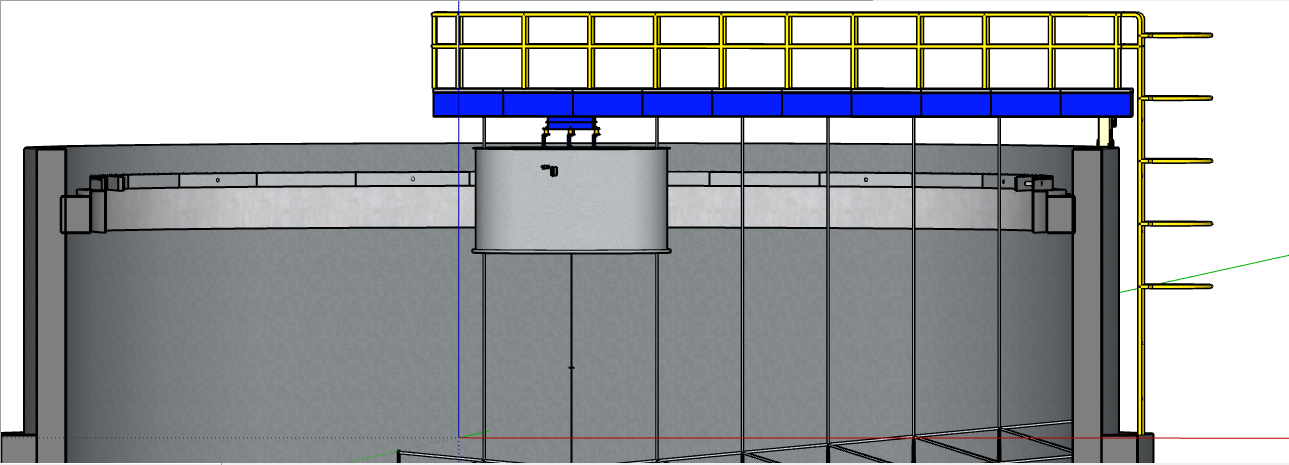

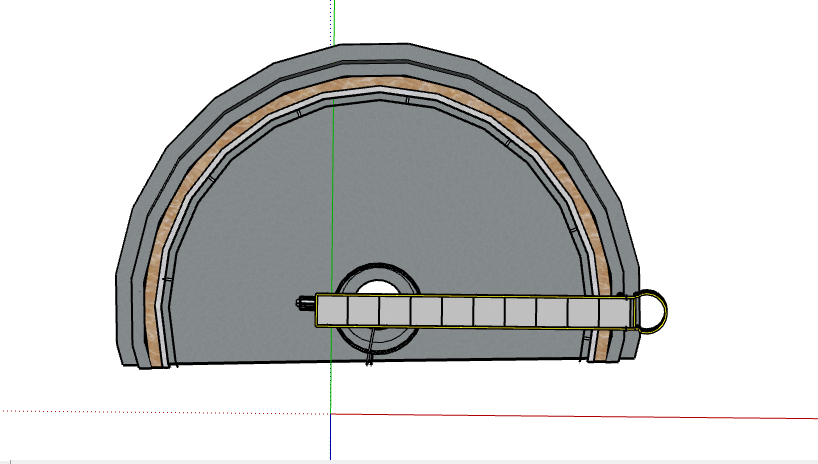

Drawing
High-Efficiency Circular Clarifier
