High-Capacity RO System Skid

The High-Capacity RO System Skid is the core unit of any integrated water treatment plant, engineered to deliver high-purity water through a compact, skid-mounted design that ensures easy operation, monitoring, and maintenance. Technical Design & Specifications: Membrane Configuration: The system features 9 pressure vessels arranged in a 3 × 3 matrix, optimized to achieve maximum water recovery and stable desalination performance. High-Pressure Pump: Equipped with a vertical multistage high-pressure pump, providing the required operating pressure for efficient reverse osmosis operation. Monitoring & Instrumentation: Includes multiple pressure gauges at inlet and outlet points for accurate, real-time membrane performance monitoring. Heavy-Duty Skid Frame: All components are mounted on a robust steel skid with adjustable base supports to ensure operational stability and minimize vibration. Key Advantages: Compact & Space-Efficient Design: Innovative vertical and horizontal layout allows a high membrane count within a minimal footprint, ideal for space-restricted industrial sites. Scalable & Flexible: Skid design enables easy expansion and seamless integration with pretreatment systems. Superior Build Quality: Corrosion-resistant materials used in pumps and piping ensure long service life even under harsh operating conditions. Ideal Applications: Centralized drinking water desalination plants. Food and pharmaceutical manufacturing process lines. Brackish water and well water desalination systems. The High-Capacity RO System Skid delivers a reliable combination of performance, durability, and operational efficiency, making it a trusted solution for industrial desalination projects.

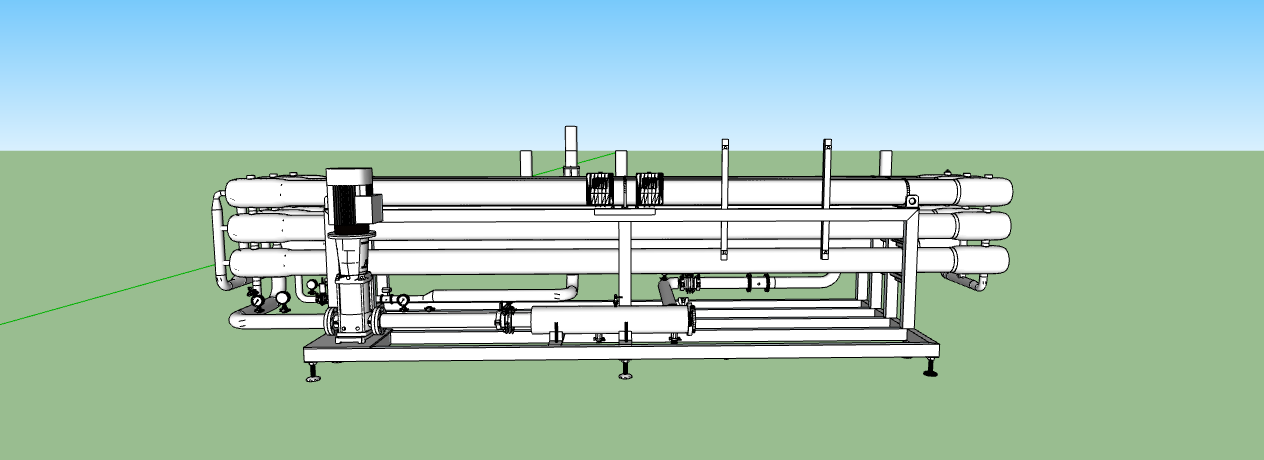

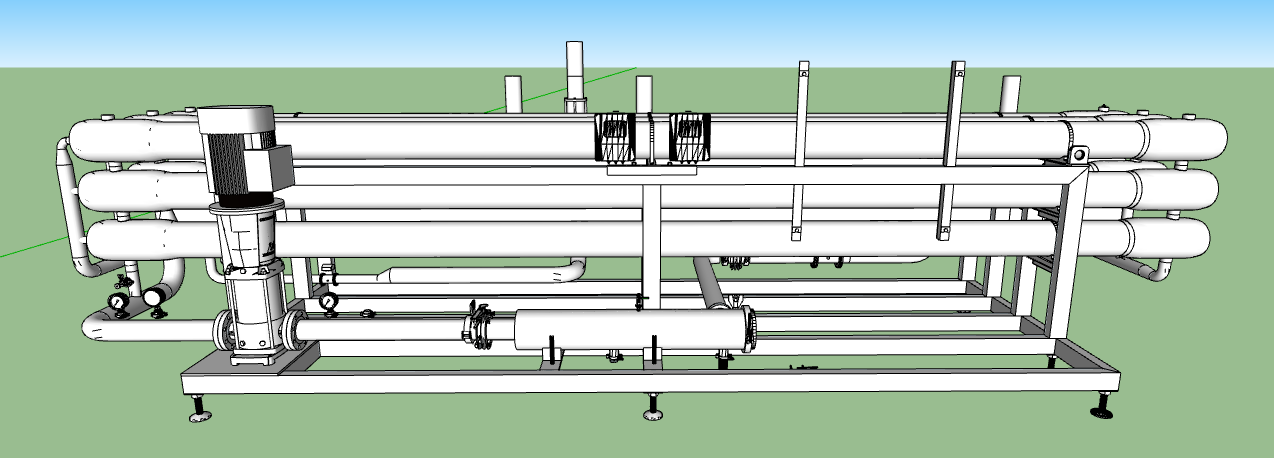

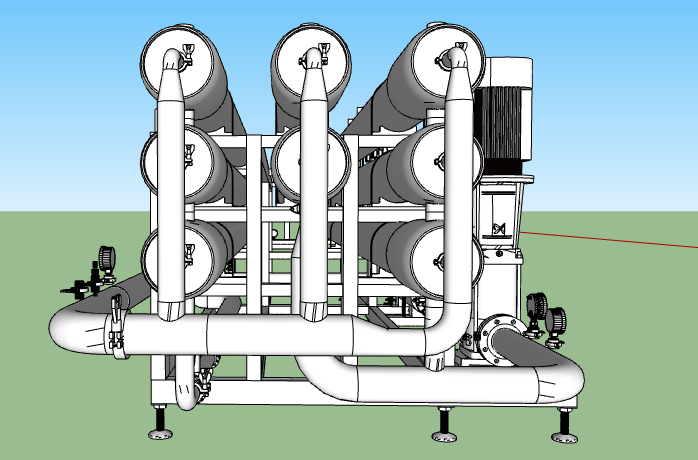

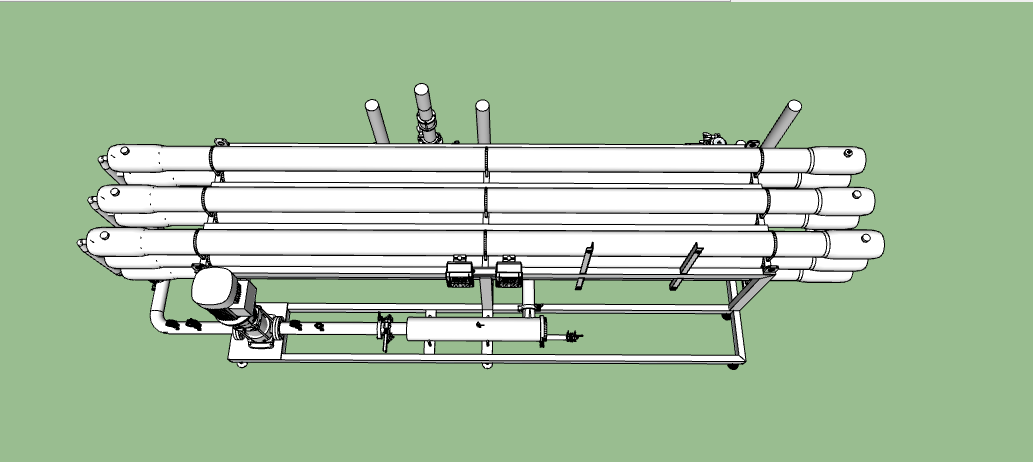

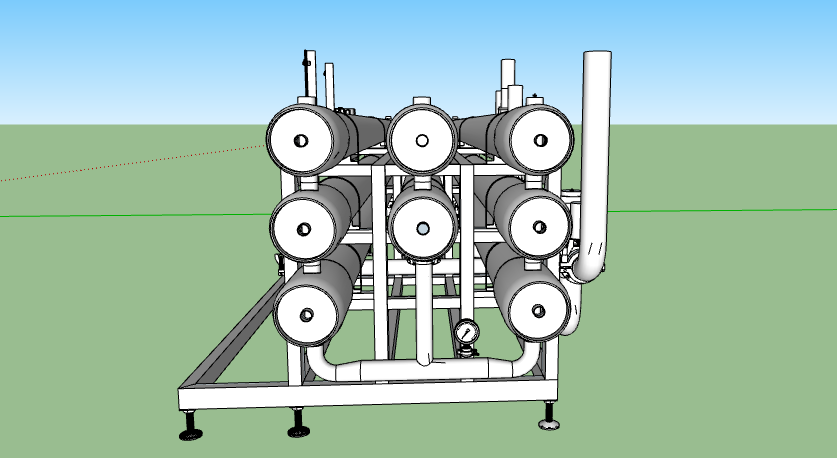

Drawing
